6 Best Pool Pump Seal Kits for Efficient Repairs

There is nothing quite as jarring as walking out to your pool equipment pad and hearing that tell-tale high-pitched whine or spotting a steady drip beneath your pump housing. A failing shaft seal is the most common culprit behind these leaks, and ignoring it will eventually lead to catastrophic motor failure. Thankfully, swapping out a seal kit is a manageable DIY project that can save you hundreds in professional repair fees.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Understanding Your Pool Pump Seal Requirements

Before you start shopping, you must identify your exact pump model. A "one-size-fits-all" approach does not exist in the world of pool hydraulics, as seal sizes vary by shaft diameter and the chemical composition of the seal face. Most kits consist of a ceramic seat and a carbon spring seal, which work together to prevent water from entering the motor housing.

Always check your pump’s data plate for the model number and serial number. If the pump is older, the manufacturer may have updated the internal components, so verifying the specific revision is vital. Using the wrong seal might stop a leak temporarily, but it will likely cause premature wear or motor seizure within a few months.

Hayward SPX1600Z2 Seal Kit for Super Pump Models

If you are running the industry-standard Hayward Super Pump, this is the gold-standard replacement kit. It is designed specifically for the SP1600 series, ensuring a perfect fit for the carbon-ceramic mating surfaces. I recommend this kit for owners who want to stick to OEM specifications to guarantee longevity.

Because the Super Pump is so ubiquitous, this kit is widely available and incredibly affordable. It is the perfect choice for the homeowner who values reliability and ease of installation over experimental upgrades. If you have a standard Super Pump, do not waste time looking at generic alternatives; this is the proven path forward.

Pentair 355005 Seal Kit for WhisperFlo Pumps

Pentair’s WhisperFlo is a powerhouse, and the 355005 seal kit is engineered to handle its high-flow demands. This kit is robust, featuring high-quality materials that resist the corrosive effects of salt systems and high chlorine concentrations. It is the definitive choice for anyone maintaining a high-end, demanding pool setup.

The precision of this kit ensures that you aren’t just plugging a leak, but restoring the pump’s original efficiency. If you notice a drip from the bottom of your WhisperFlo, this is the exact kit you need to get back to peak performance. It is a must-have for owners who prioritize keeping their high-efficiency equipment running at factory standards.

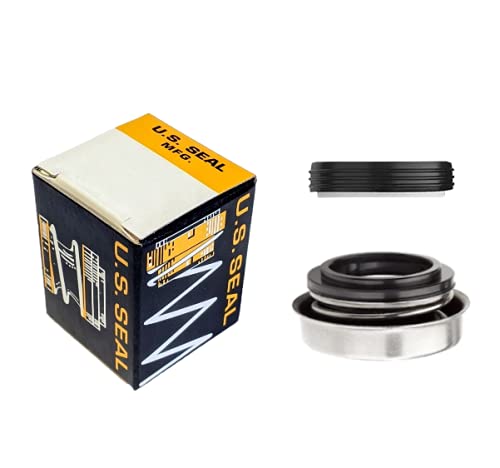

Sta-Rite U109-136 Seal Kit for Dura-Glas Units

The Sta-Rite Dura-Glas is known for its durability, but even the best equipment needs a refresh after a few seasons of heavy operation. The U109-136 kit is specifically calibrated for these units, providing the exact tension required for the mechanical seal to remain watertight under pressure. It is a straightforward, no-nonsense kit that does exactly what it promises.

This kit is ideal for the DIYer who wants to keep their vintage or current Sta-Rite pump humming without any guesswork. It includes the necessary gaskets to ensure a complete reseal of the housing, which is a common oversight in cheaper aftermarket kits. If you own a Sta-Rite, skip the universal options and stick with this dedicated solution.

Aladdin AS-200 Universal Seal Kit Compatibility

The Aladdin AS-200 is widely considered the "Swiss Army Knife" of pool seals because of its broad compatibility across many standard pumps. While I generally advocate for OEM parts, this kit is a fantastic alternative for those with older or discontinued pump models where original parts are hard to find. It is reliable, cost-effective, and widely stocked at most local pool supply stores.

However, keep in mind that "universal" means it is designed to fit a range of tolerances. If you have a newer, high-performance pump, I would still suggest sticking to the manufacturer-specific kit. For the budget-conscious pool owner with an older system, the AS-200 is a reliable workhorse that will get you back in the water without breaking the bank.

GPM 5020-087 Seal Kit for Jandy Stealth Pumps

The Jandy Stealth pump is a complex piece of machinery, and the GPM 5020-087 kit is the precision-engineered fix it deserves. This kit stands out because it addresses the specific seal geometry required for the Stealth’s unique impeller design. It is built to withstand the high temperatures and pressures that these pumps often generate during peak summer months.

If you own a Stealth pump, you need a kit that matches its engineering quality, and this is it. It is the right choice for the meticulous pool owner who refuses to compromise on quality or performance. You can install this with confidence, knowing it is designed to handle the specific load of your Jandy system.

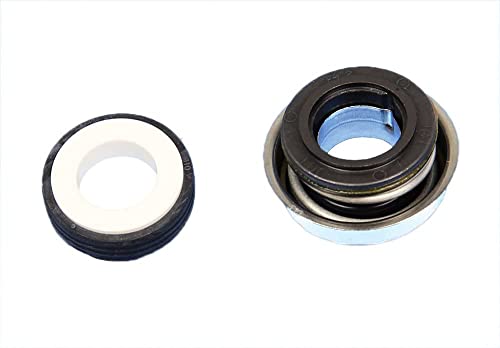

Waterway 319-3100B Seal Kit for Hi-Flo Systems

Waterway Hi-Flo pumps are common in both pools and spas, and the 319-3100B kit is the standard repair component for these units. It is designed for easy installation, which is a major plus since spa pumps can sometimes be tucked into tight, hard-to-reach equipment bays. This kit provides a tight, reliable seal that resists the vibration common in high-flow water systems.

Whether you are fixing a pool pump or a spa pump, this kit is the reliable choice for the Waterway ecosystem. It is straightforward, durable, and highly effective. For anyone managing a Waterway setup, this kit is the most logical and efficient way to resolve a leak.

Essential Tools for Installing Pump Seal Kits

You don’t need a professional workshop to replace a pump seal, but you do need the right basics. A set of nut drivers, a flathead screwdriver, and a pair of needle-nose pliers are mandatory for disassembling the motor housing. I also strongly recommend having a tube of silicone-based pool lubricant on hand to ensure the O-rings seat properly without pinching.

Some pumps require a specialized puller to remove the impeller from the motor shaft. Before you start, check your pump manual to see if the impeller is threaded or keyed. Having a rubber mallet nearby can also be helpful for gently tapping parts into place without damaging the plastic components.

Step-by-Step Guide to Replacing Pump Seals

First and foremost, turn off the power at the breaker. Never attempt to work on a pump while it is connected to electricity. Drain the pump housing by removing the drain plugs, then disconnect the plumbing and remove the motor assembly from the pump body.

Once the motor is free, remove the diffuser and the impeller to access the old seal. Carefully pry out the old ceramic seat and the spring-loaded seal, ensuring you do not scratch the motor shaft in the process. Clean the area thoroughly, lubricate the new seal, and press it into place using firm, even pressure. Reassemble the pump in the reverse order, ensuring all O-rings are lubricated and seated correctly.

Testing Your Pump After Seal Replacement

Once you have reassembled the pump and reconnected the plumbing, prime the pump by filling the basket with water. Turn the power back on and watch the seal area closely for any signs of moisture. It is normal to see a tiny bit of condensation during the first few minutes, but a steady drip means the seal is not seated correctly.

If it remains dry, let the pump run for at least 30 minutes to ensure the seal settles into its groove. Check the pump’s pressure gauge to ensure your flow rate is back to normal levels. If everything looks stable, you have successfully extended the life of your pump and saved yourself a significant amount of money.

Replacing a pump seal is a rite of passage for any responsible pool owner, and it is far simpler than it appears at first glance. By choosing the right kit for your specific model and taking your time during the installation, you can keep your circulation system running perfectly all season long. Stay proactive with your maintenance, and your pool will remain a worry-free sanctuary for years to come.
